Mobile Mark SMD-3500-3C3C-WHT-180

TE Connectivity

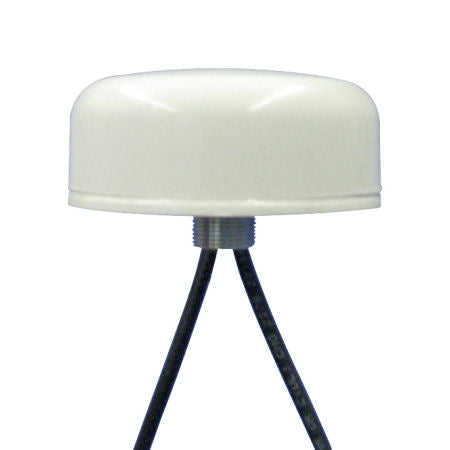

Surface mount WIMAX MIMO antenna with 2 leads installs to surfaces up to 1/4" thick. Requires a 5/8'" hole. Access to the underside of the body surface is required to complete the installation. There are 3 cables and each cable covers the entire frequency range: 2.1-2.7 GHz and 3.3-3.8 GHz.

2100-2700/3300-3800

4 dBi

20

1.5"H x 3.5" dia.

ASA Plastic

White

5/8" Hole bolt mount

RF195

15'

Choose Optional Connector Installed Above

2 Years
