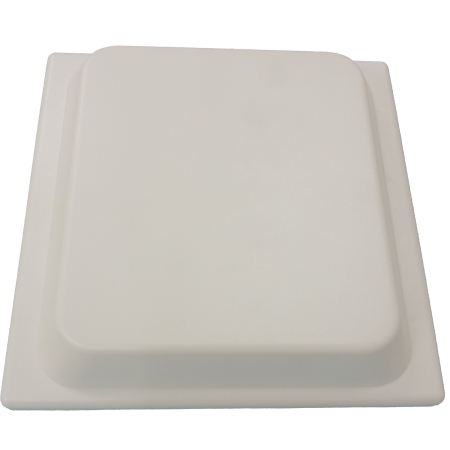

Mars Antennas MA-WA56-DP19B
$150.06
Sale price
$150.06
Regular price
$189.95
Skip to product information
Mars Antennas MA-WA56-DP19B
$150.06
Sale price
$150.06
Regular price
$189.95
Manufacturer
Mars Antennas
Product Description
4.9-6.1 GHz Dual Pol/Dual Slant Subscriber Antenna
Product Narrative
4.9 – 6.1 GHz dual-polarization and dual slant subscriber antenna designed to provide full coverage for the 5 GHz frequency band with two (2) N Female connectors. Covers 4.9 – 5.875 GHz with 1.7:1 VSWR and the 5.875 – 6.1 GHz with 2.0:1 VSWR. Includes MNT-23 mount.
Lightning Protection
DC Ground
Maximum Rated Wind Velocity
125 mile/h
Item Length
7.9 in
Item Weight
0.88 lb
Item Width
7.9 in
Specific Frequency
4900-6100 MHz
Maximum Power
10 W
Polarization
Linear, Horizontal, Vertical
Horizontal Beamwidth
16 deg
Gain dBi
19 dBi
Maximum VSWR
1.7:1, 2.0:1
Gain dBd
16.85 dBd
Electrical Downtilt
Fixed
RF Connectors
N Female, N Female
Item Height
1.25 in
