Laird TE Connectivity Y8063
$213.26
Sale price
$213.26
Regular price
$269.95
Manufacturer
TE Connectivity
Product Description

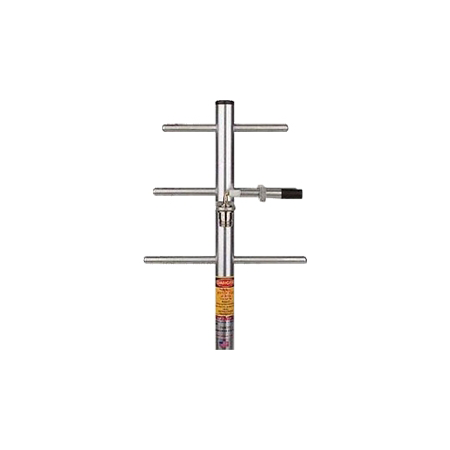

806-896 MHz 6dB 3 Element Yagi Antenna
Product Narrative
LAIRD's Y8063 gold-anodized fully welded 800 / 900 MHz Yagi antenna is great for cleaning up noisy 800 MHz signals. This Yagi antenna operates in the 806 – 896 MHz frequency range. The Y8063 is a three-element antenna providing 6 dBd gain with a maximum input power of 300 W. The Yagi antenna is terminated with an N Female connector and includes the stainless steel mounting hardware.
The internal matching design of this Yagi directional antenna will not ice up, detune, or corrode. Laird's 806 – 896 MHz aluminum finished Yagi antenna can be custom VHF tuned.
The internal matching design of this Yagi directional antenna will not ice up, detune, or corrode. Laird's 806 – 896 MHz aluminum finished Yagi antenna can be custom VHF tuned.
Maximum Power
300 W
Gain dBd
6 dBd
Connector Placement
Center
Item Length
16.75 in
Maximum VSWR
1.5:1
Polarization
Linear
Type of Hardware Included
U-Bolts
Item Weight
1.5 lb
Maximum Rated Wind Velocity
125 mile/h
Horizontal Beamwidth
72 deg
Specific Frequency
806-896 MHz
Vertical Beamwidth
57 deg
Lightning Protection
DC Ground
Gain dBi
8.15 dBi
RF Connectors
N Female
Warranty
5 Year
