Laird TE Connectivity VLT69273W2NJ-518A
$190.37
Sale price
$190.37
Regular price
$279.95
Skip to product information
Laird TE Connectivity VLT69273W2NJ-518A
$190.37
Sale price
$190.37
Regular price
$279.95
Manufacturer
TE Connectivity
Product Description
3-PORT 2x-4G, 1x-GNSS, WH
Product Narrative

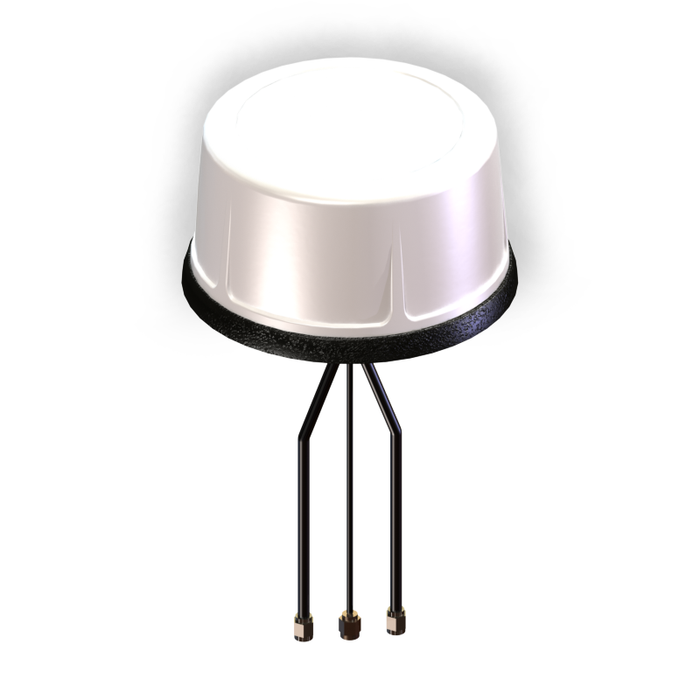

The TE Connectivity vehicular 3-port antenna consists of multiple radiators under a single housing. It can be configured for use in 802.11n or multiband SISO applications. Configured with ports that can cover 698-960 / 1710-2700 MHz and GNSS (1561 - 1602 MHz) allowing for MIMO/SISO and/or Navigation/Location opportunities within the same antenna. Connector options include SMA male connectors for 3G/4G LTE and GNSS ports with an RPSMA male connector for the WiFi ports.
The housing incorporates a low-profile, rugged design that meets IP67 standards. The antenna also features high impact, UV-resistant polycarbonate plastic available in black or white.
Antenna Type
Disk-Puck, Vehicular
Cable Length
5.2 in
Connector
SMA Male
Frequency Range
698-960 MHz, 1710-2700 MHz
Gain
1.8 - 5.1 dBi
Pattern Type
Omnidirectional
Warranty
5 Year
