Laird TE Connectivity PC8910N

TE Connectivity

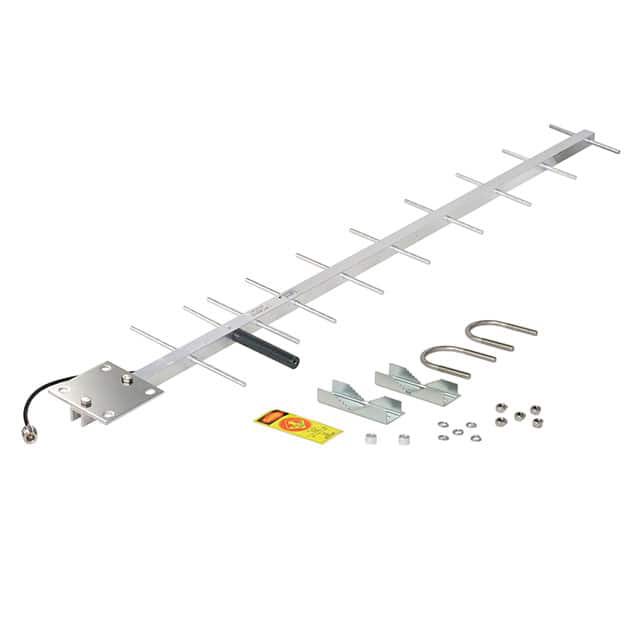

Laird PC8910N yagi antenna is designed for 800 MHz, ESMR, SMR, cellular or conventional applications. The 10-element antenna has 11 dB gain and operates in the 896 - 940 MHz frequency range. This yagi antenna has a maximum power input of 200 watts and includes a 19 inch pigtail terminated with an N female connector. U-bolts; maximum mast diameter is 2-1/8 inches are supplied for mounting.

Specific Frequency 824-896 MHz

Maximum VSWR 1.5:1

Maximum Power 200 W

Gain dBd 11 dBd

Gain dBi 13.15 dBi

Jumper Included Yes

Item Weight 2.31 lb

Horizontal Beamwidth 45 deg

Item Length 41.44 in

Lightning Protection DC Ground

RF Connectors N Female

Type of Jumper Included 8" Pigtail w/ N Female

Connector Placement Pigtail

Polarization Linear

Type of Hardware Included U-Bolts

Vertical Beamwidth 44 deg

Maximum Rated Wind Velocity 125 mile/h

5 Year
