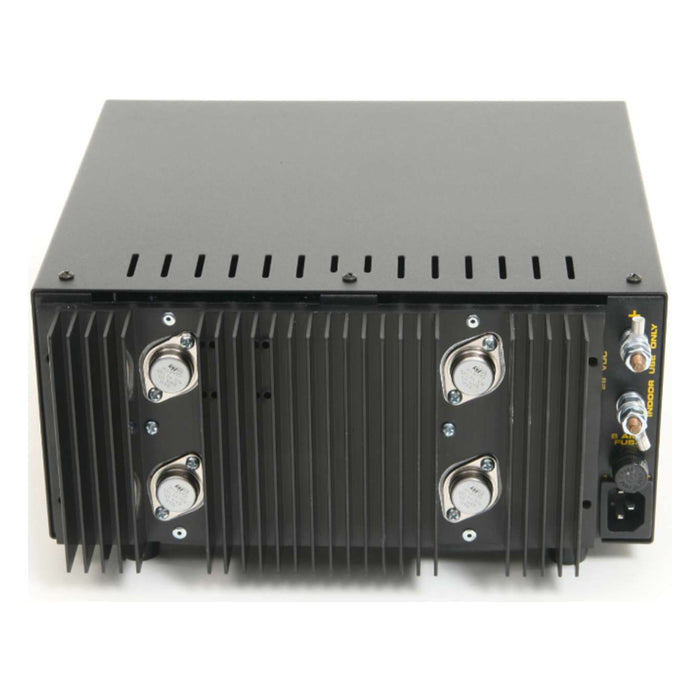

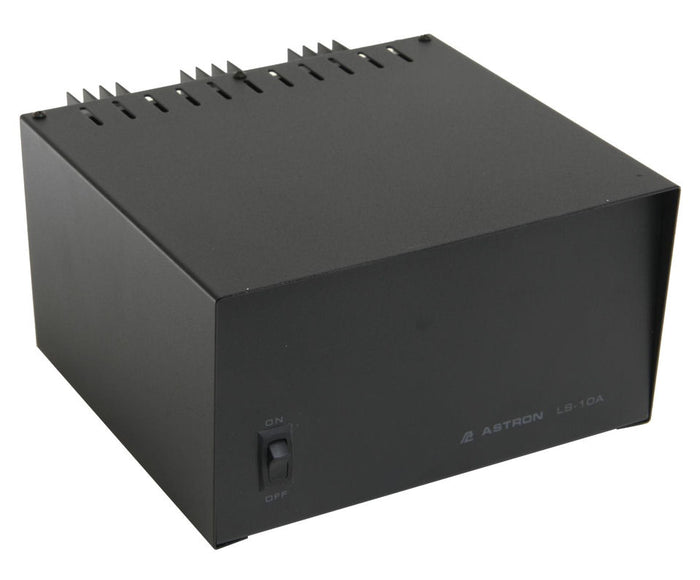

Astron LS-10A-BB

Astron

LS-10A-BB

10 Amp Power Supply with Battery backup

115 Volts AC

28 Volts DC (Adjustable from 22.0-32.0 Volts DC)

8

10

Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Features include:

• Solid state electronically regulated
• Fold-back current limiting protects power supply from excessive current and continuous shorted output
• Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
• Maintain regulation and low ripple at low line input voltage
• Heavy duty heat sink
• Three conductor power cord
• All metered units feature backlit meters

5 mV

Yes

No

9 x 5 x 10.5

Astron linear power supplies are heavy duty and solid state electronically regulated.

1 yr
